BoltHold am625 Asphalt Anchor, 6-PACK
Polycarbonate Asphalt Anchors with screws and washers, 6" long, 1,200 lbs. pull rated, set of 6

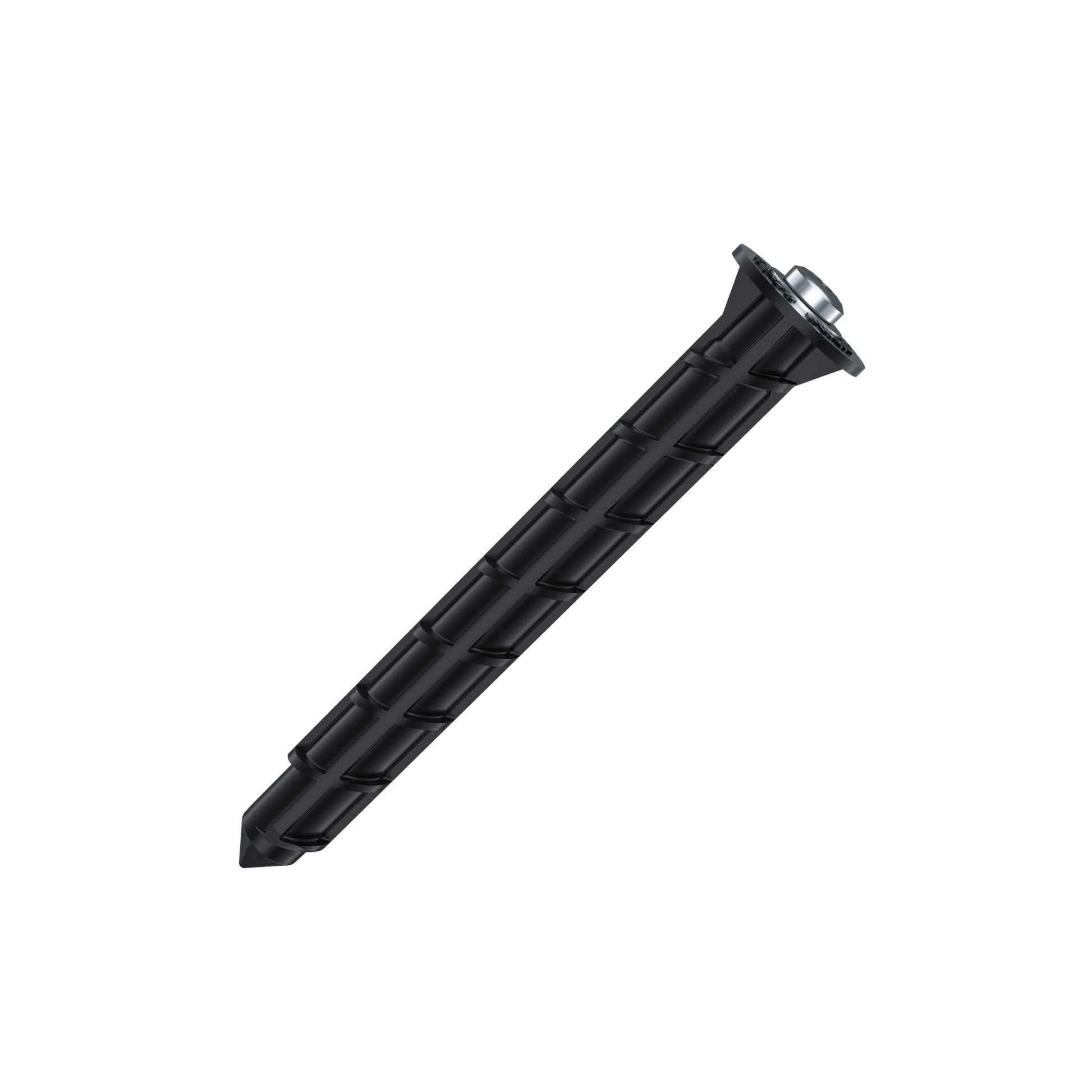

The BoltHold AM625 is a set of 6 asphalt anchors rated at 1,200 lbs. safe pull. The 6" long anchor is designed to mount bike racks, signs, mats, directly to asphalt surfaces. The anchors are molded from a tough polycarbonate engineering resin with high force resistance and can resist temperatures in excess of 140F. For technical information please select the tabs above.
These molded anchors come with a 1.5" long, 1/4" thread cutting screw and a washer. The screw has a T30 (Torx) head. It accommodates mounting plates up to 1" thick. The anchor requires a 7/8" hole, 6" deep, and the use of an adhesive grout such as our EPX2 or EPX3. A 1.2" diameter head at the top of the anchor prevents the anchor from dropping below the surface, as well as preventing the anchor from being pulled up into the mounting plate through the clearance holes in the plate when the screw is tightened.
The anchors are mounted flush with the surface of the roadway; attached objects can be removed without leaving dangerous screws or protrusions on the surface.
The AM625K is a set of 6 anchors, (6) ¼" screws and (6) 0.7" washers. Also included is an graphic installation instruction. T30 insert bits for the screws are available here.
Technical Details
| Weight | 1.0 lbs |
|---|---|
| SKU | 01-7625.K |
| Barcode | 689481982663 |
