Anchors, adhesive & tools

Everything for bolting equipment down to asphalt. Pick your anchor and its page adds the adhesive, drill bit and brush in the right amounts.

Help me choose Compare all specs

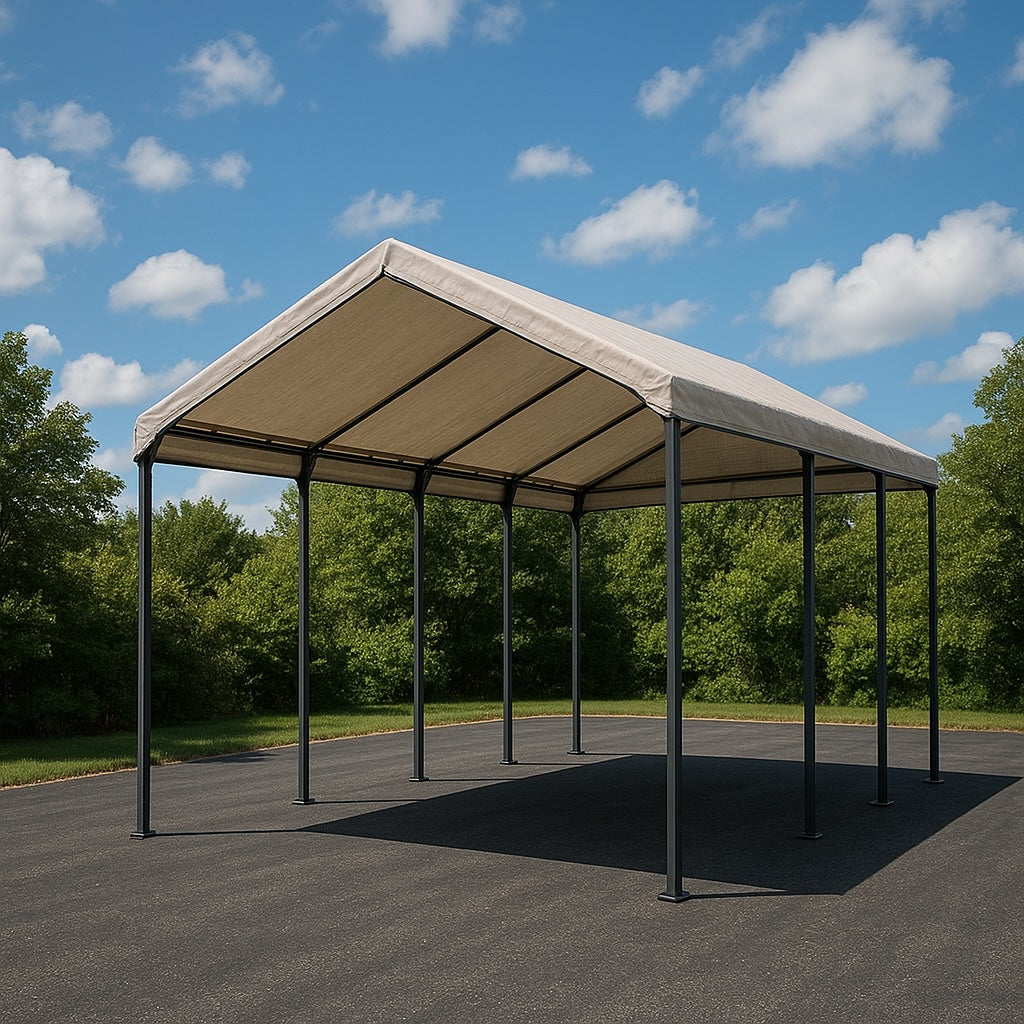

Or start from your project: Bike racksFencesCarportsSpeed bumpsBollardsDelineators

Anchors

Grouped by the bolt each one takes. All anchors come in 6-packs with bolts and washers.

Not sure which? Help me choose

Full specifications

Datasheets and test reports

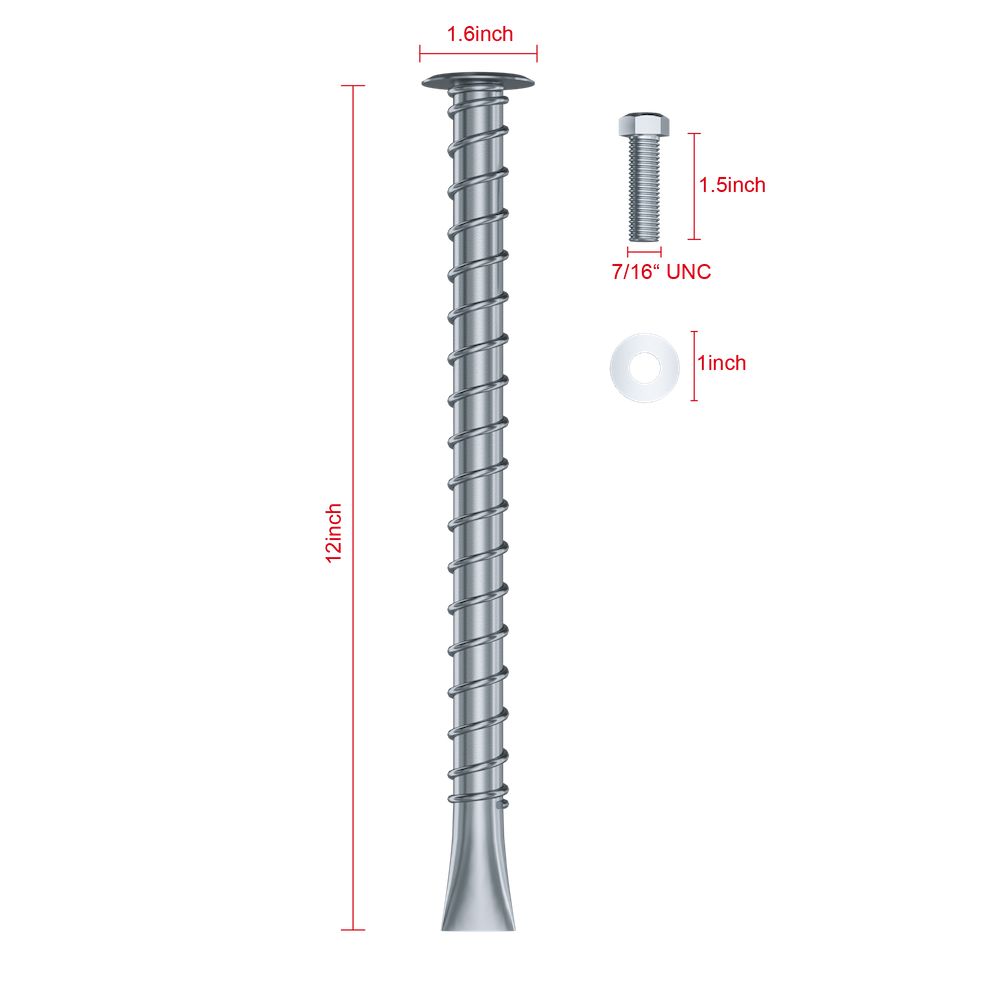

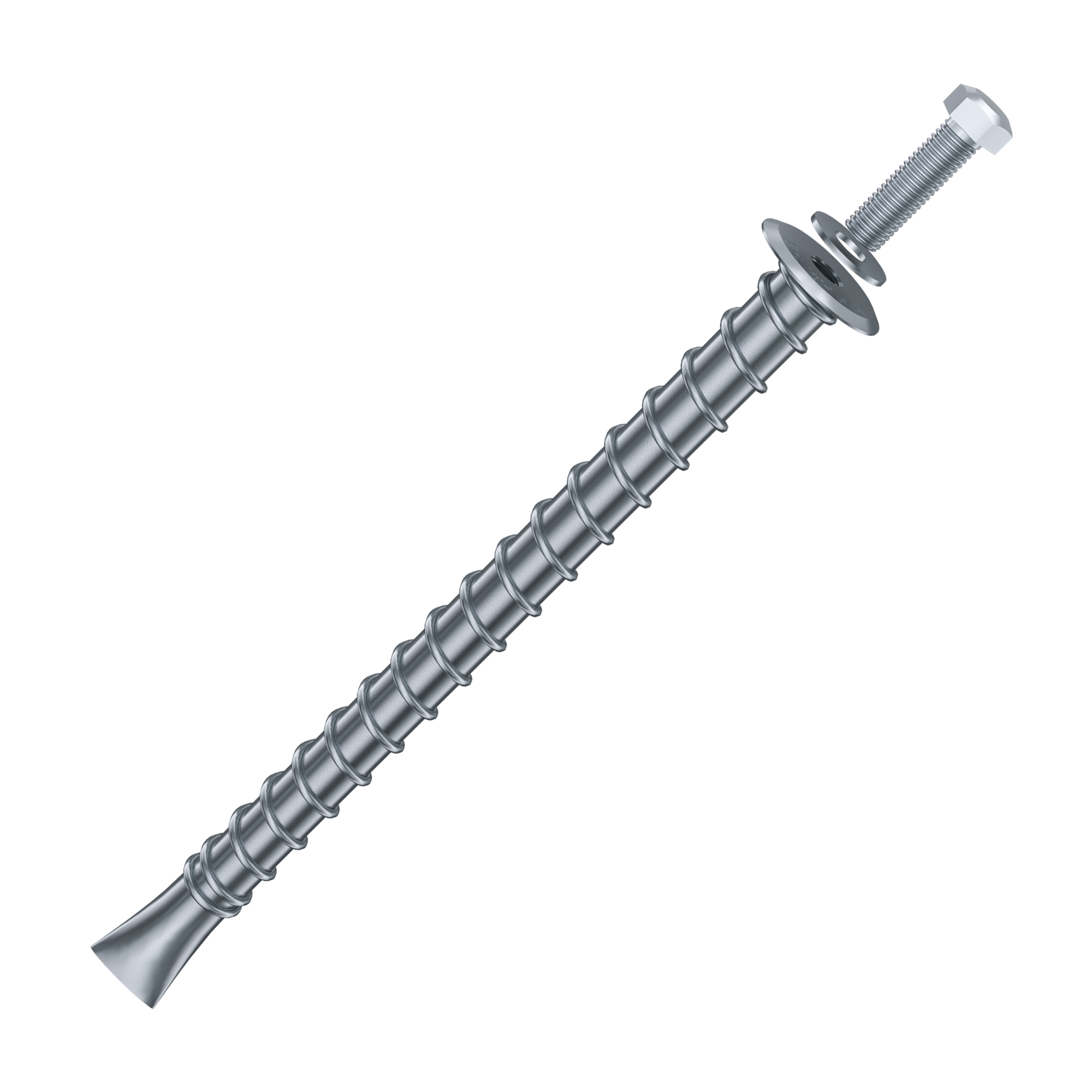

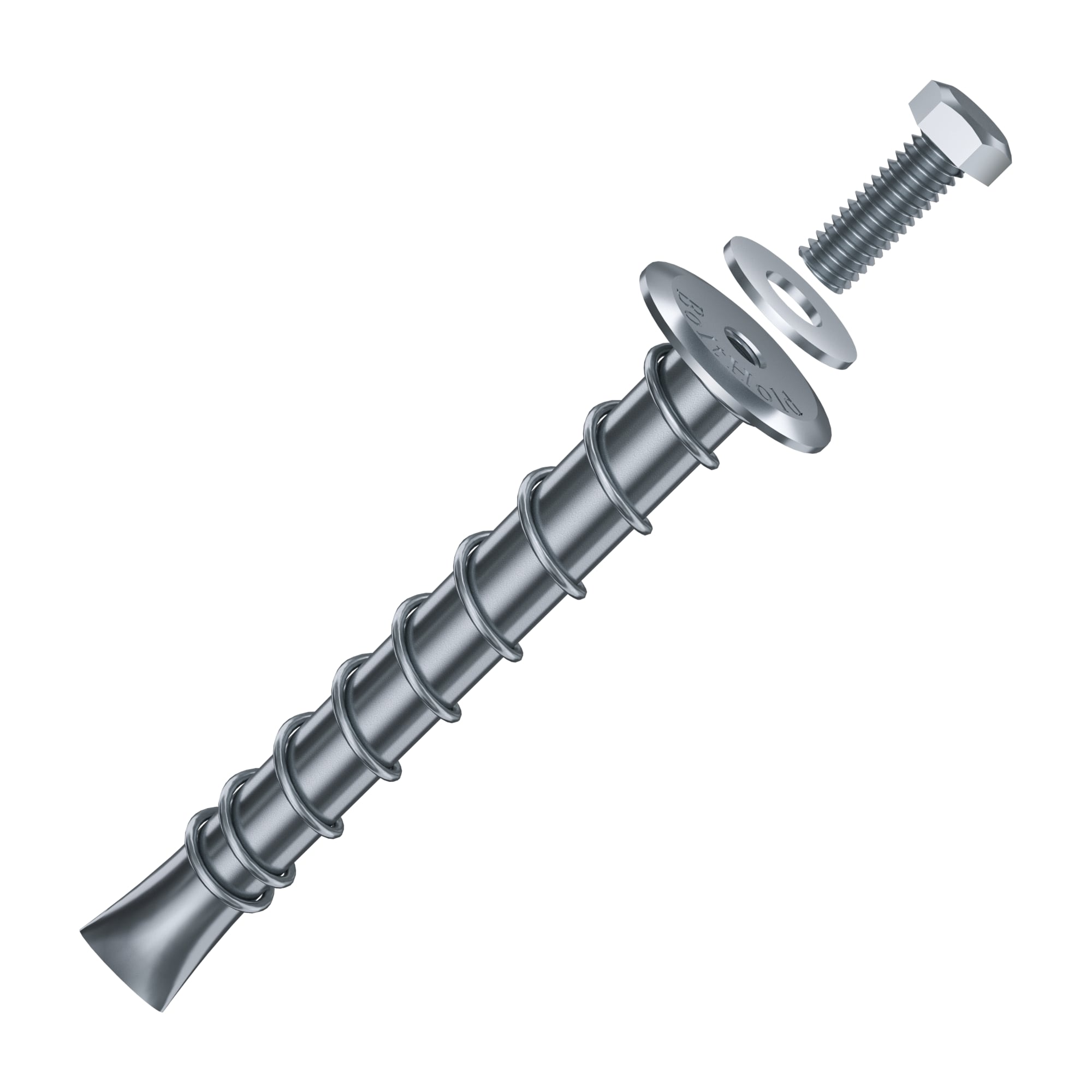

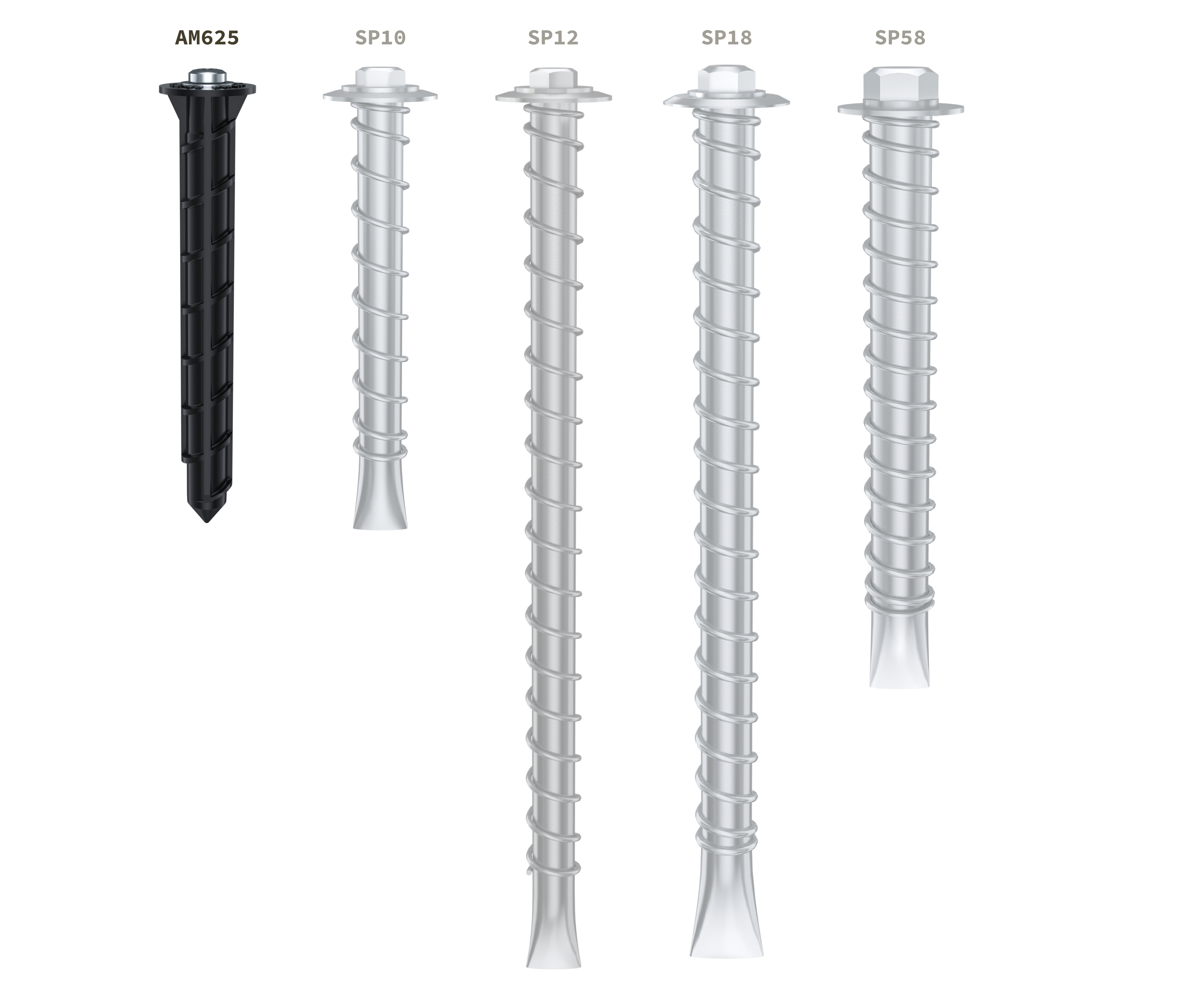

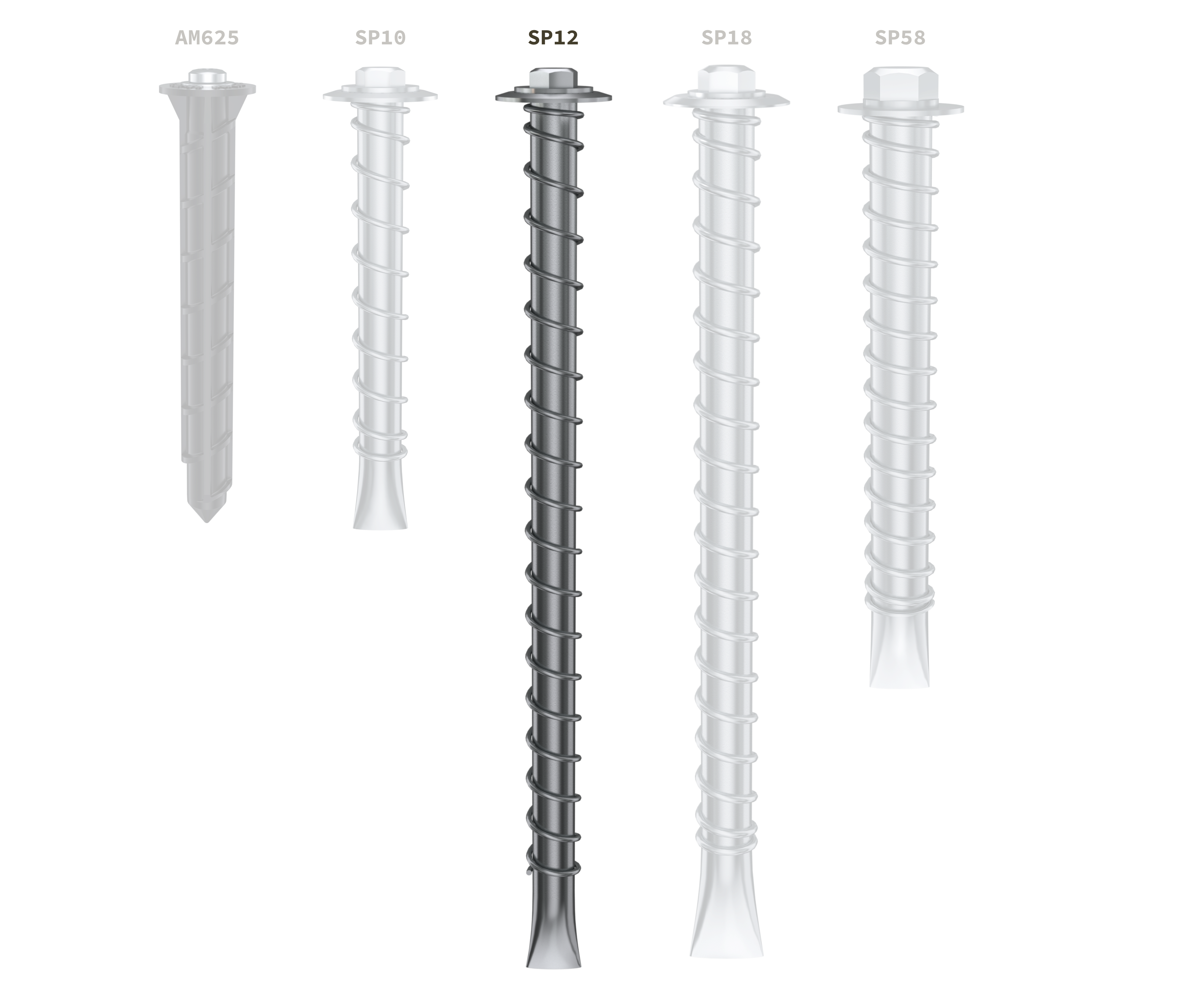

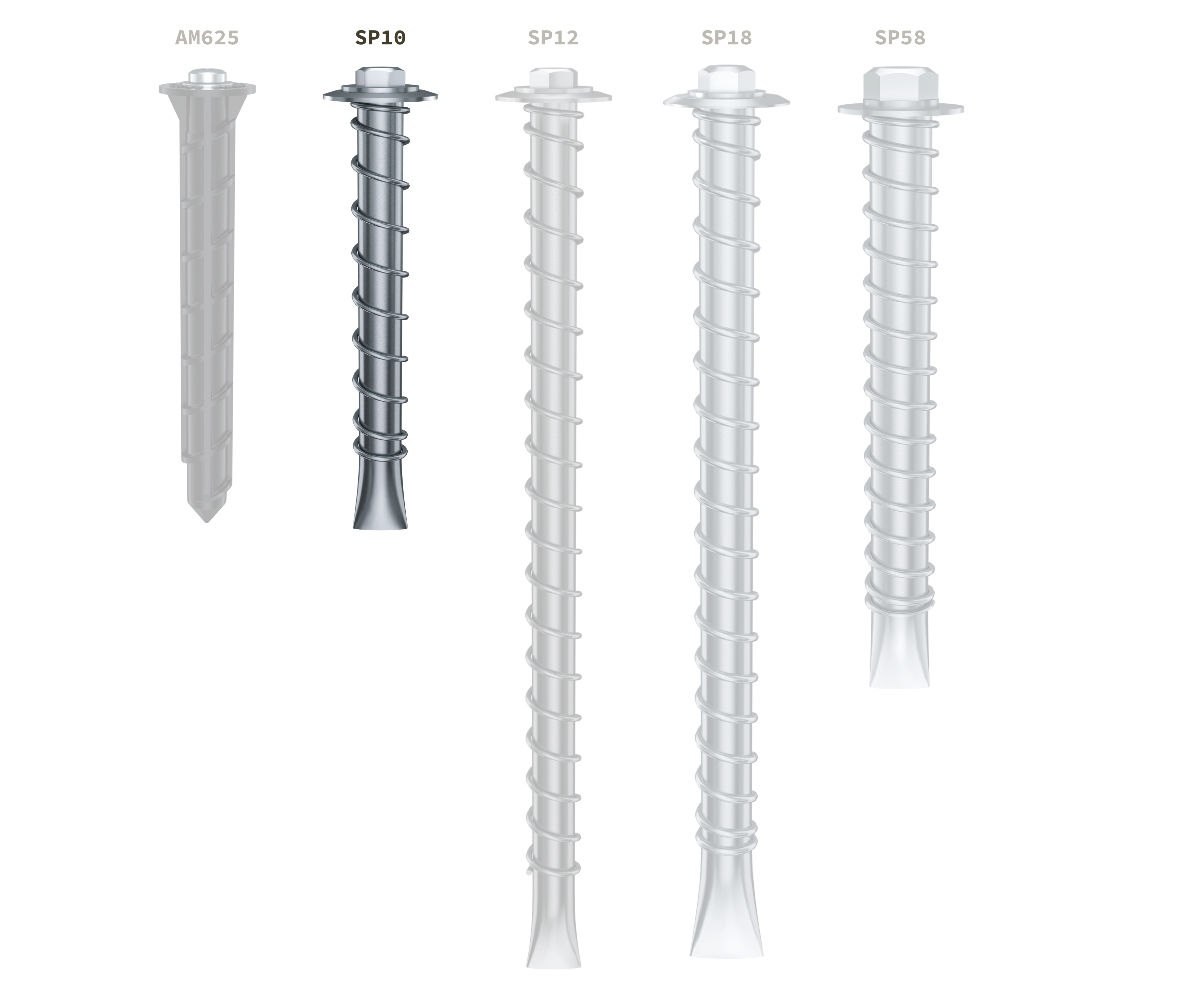

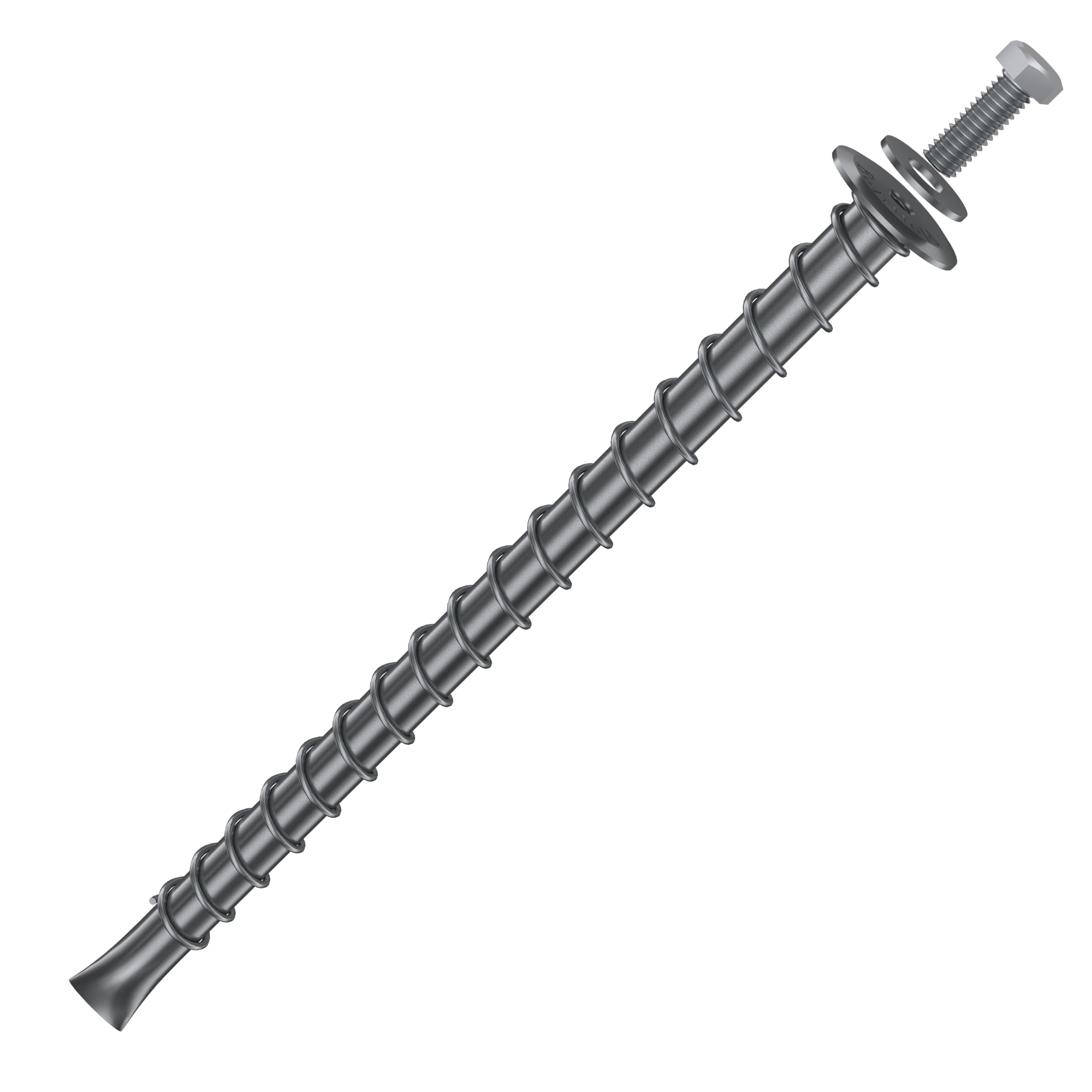

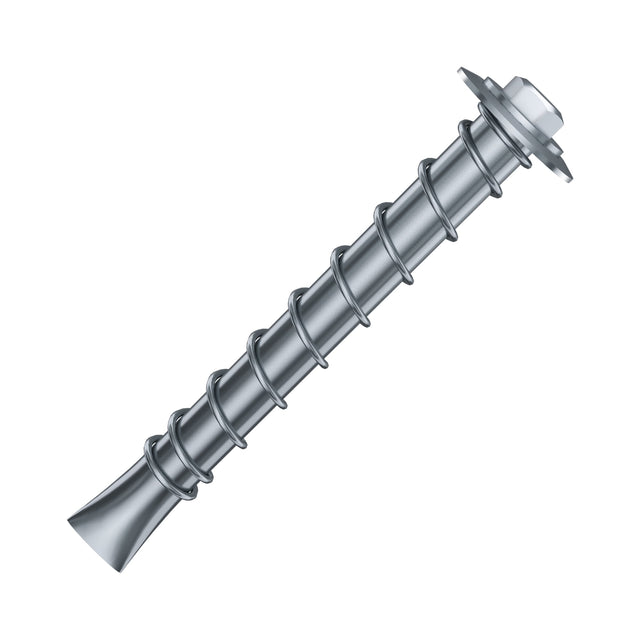

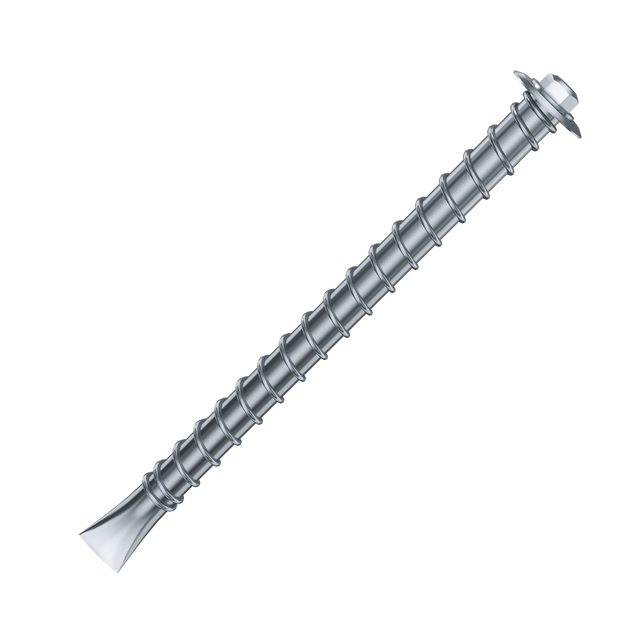

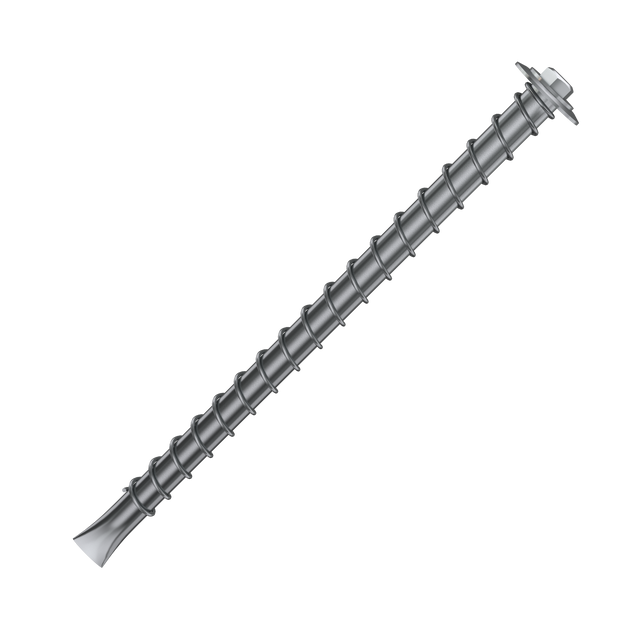

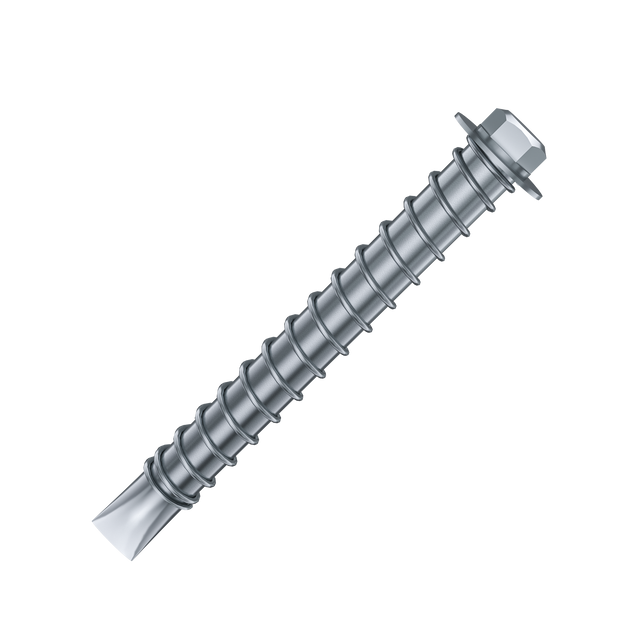

Specification SP10Light Use SP12Medium Duty SP18Heavy Duty SP58Extra Heavy Duty
Fit

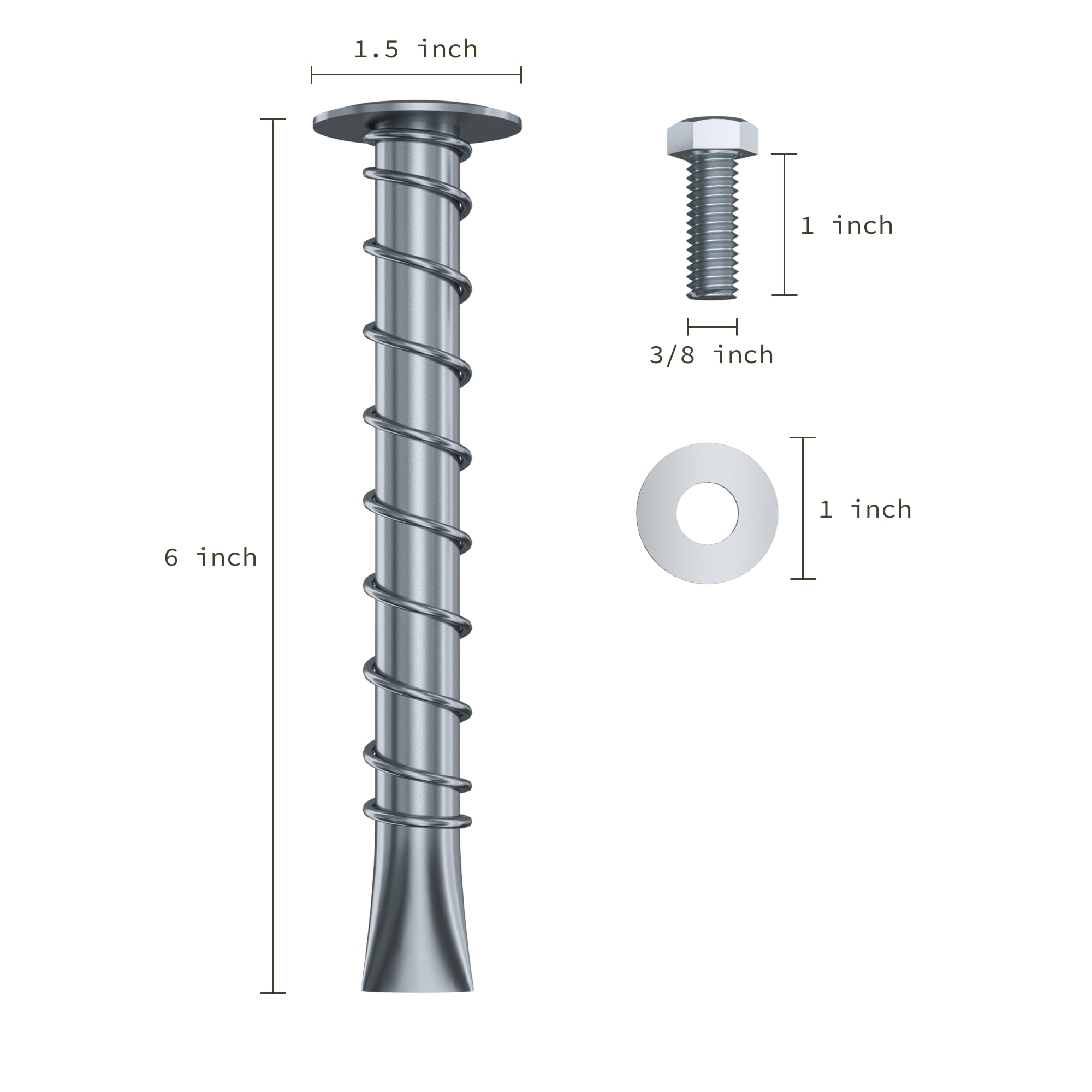

Bolt included 3/8" × 1" 3/8" × 1" 7/16" × 1.25" 5/8" × 2"
Thread 3/8"-16 UNC 3/8"-16 UNC 7/16"-14 UNC 5/8"-11 UNC
Mounting-plate hole 1/2″ 1/2″ 9/16″ 3/4″
Anchor length 6″ 12″ 12″ 10″
Head size 1.35" × 0.08" 1.35" × 0.08" 1.35" × 0.08" 1.5" × 0.08"
Install

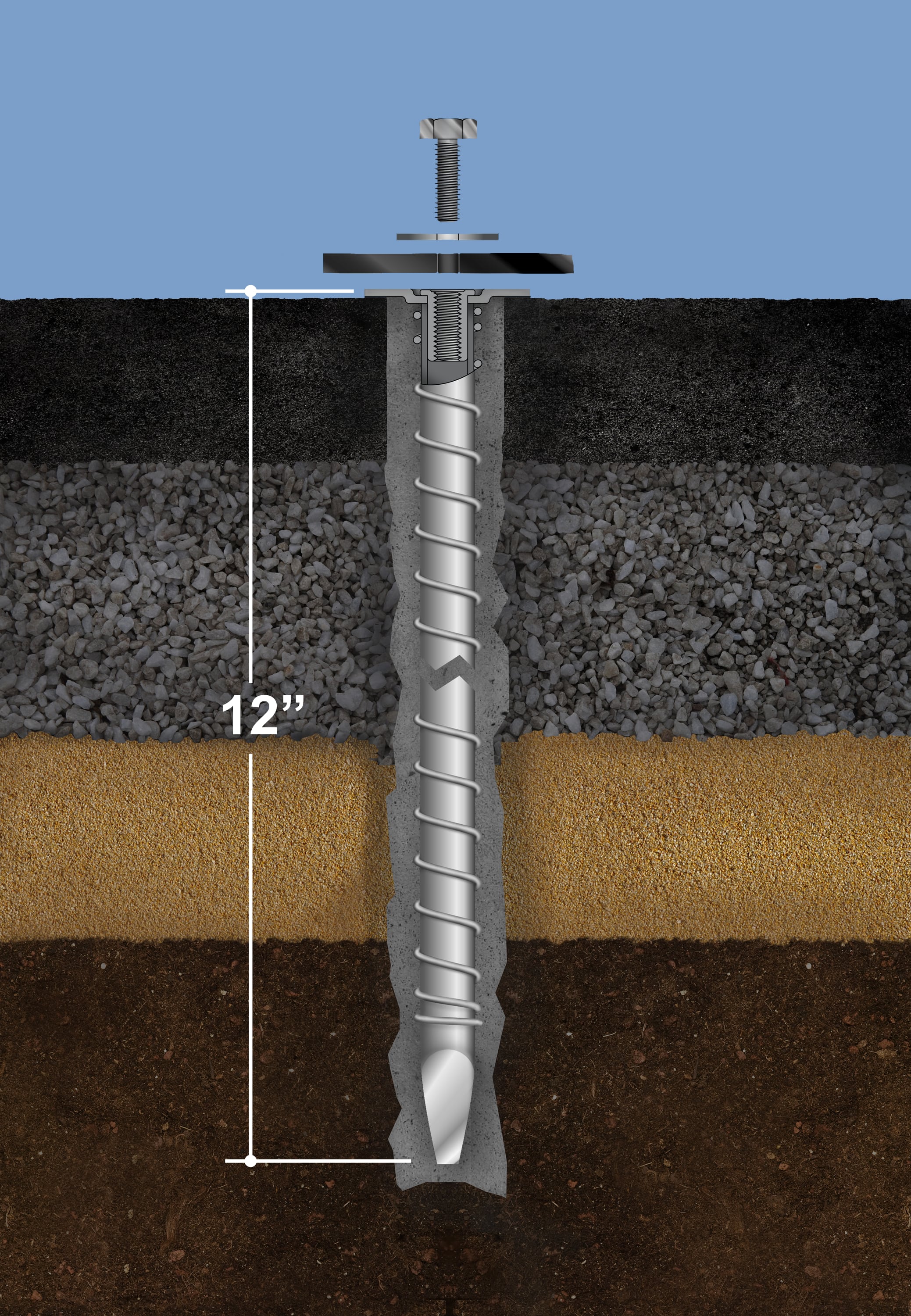

Hole 7/8" × 6″ deep 7/8" × 12″ deep 1" × 12″ deep 1-1/2" × 10″ deep
Drill SDS-plus rotary hammer SDS-plus rotary hammer SDS-plus rotary hammer SDS-max rotary hammer
Drill bit 7/8" x 8"$15.00 7/8" x 16"$24.00 1" x 16"$27.00 1-1/2" (SDS MAX)$74.00
Hole brush 7/8"$9.00 7/8"$9.00 1"$9.50 1.5"$9.50
Adhesive per pack 2 × EPX3or 1 × EPX2 2.5lb Pail 2 × EPX3or 1 × EPX2 2.5lb Pail 3 × EPX3or 1 × EPX2 2.5lb Pail 6 × EPX3or 1 × EPX2 10lb tub
Guide loads
Pull 1,500 lb 2,000 lb 2,500 lb 5,000 lb
Side (before it shifts) 1,000 lb 1,500 lb 2,000 lb 2,500 lb
Buying
Material Zinc · Stainless steel Zinc · Stainless steel Zinc · Stainless steel Zinc · Stainless steel
Price per anchor $11.00 $12.00 $14.00 $33.33
Downloads Datasheet · 3D model Datasheet · 3D model Datasheet · 3D model Datasheet · 3D model

Mounting-plate holes should be 1/8″ larger than the bolt; drill out smaller holes with a step bit. Guide loads come from the low end of our test results, including hot pavement up to 120°F, for short-duration loads on anchors installed in 3″ asphalt. The side guide load is where the anchor starts to shift, not where it fails. They are guidance, not a certified rating. How we test

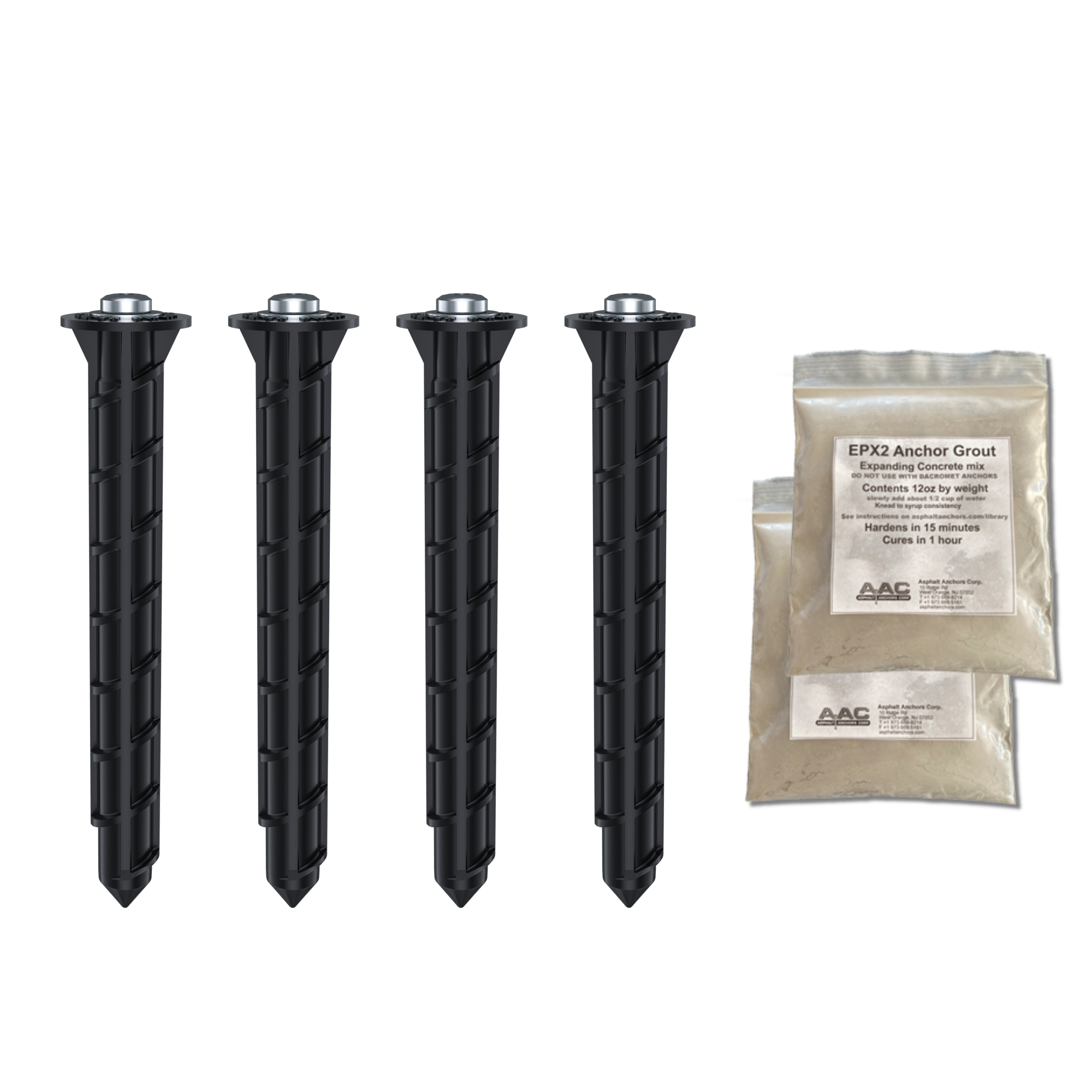

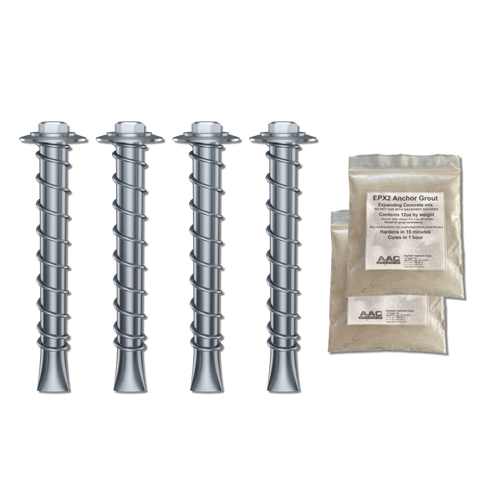

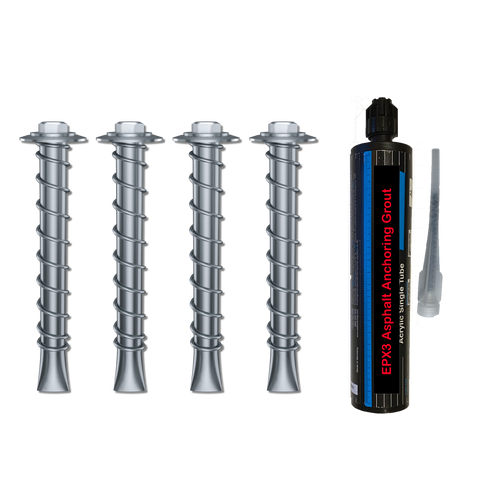

A few anchors? Start with a kit

Four SP10 anchors with the right amount of adhesive, for a bike rack, a sign or a few posts.

Need five or more? A 6-pack of SP10 plus the smallest EPX2 is $84, or $14.00 per anchor.

Choose your adhesive

Every anchor needs one. Anchor pages work out how much for your count. Buying adhesive on its own? The calculator sizes it from your anchors.

How much do I need?

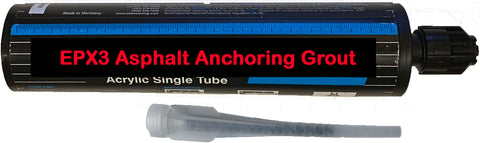

EPX3 epoxy

Recommended

Our best adhesive. Clean cartridges, works in cold weather.

  • Two-part epoxy, 10 oz cartridge
  • Needs a high-thrust gun, like the CG40

Sets about 4 SP10 or 1 SP58

$24per cartridge

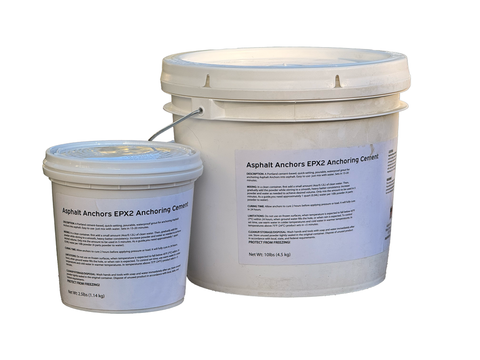

EPX2 cement

Lowest cost

Budget anchoring cement for installs at 45°F and above.

  • 6 x 12 Oz Bags $50 Sets about 23 SP10 or 6 SP58
  • 2.5lb Pail $18 Sets about 12 SP10 or 3 SP58
  • 10lb tub $26 Sets about 51 SP10 or 13 SP58

From $18

Choose a size: EPX2 cement

Drill, clean, set

The bits, brushes and guns that match each anchor. Pick an anchor to see only its parts.

Show parts for

Drill

Carbide drill bit, SDS-plus7/8″ × 8″, 7/8″ × 16″ or 1″ × 16″
  • SP10
  • SP12
  • SP18
From $15Choose: Carbide drill bit, SDS-plus
Carbide drill bit, SDS-max1½″ for SP58. Needs an SDS-max rotary hammer.
  • SP58
$74.00
Locking bit holderMilwaukee SHOCKWAVE, 6″
  • All anchors
$20.00

Clean & fill

Hole cleaning brush7/8″, 1″ or 1½″
  • All anchors
From $9Choose: Hole cleaning brush
CG40 high-thrust caulk gunFor EPX3. Skip it if you have a high-leverage or electric gun.
  • EPX3
$24.00
EPX3 mixing nozzleSpare nozzle. Each cartridge comes with one.
  • EPX3
$2.50

Extras

Most installs don't need these.

EyeboltThreads into the anchor for tie-downs
  • All anchors
From $6Choose: Eyebolt
FlattenerRecesses the anchor head below the surface
  • SP10
  • SP12
  • SP18
$79.00

Bigger bolts and US-made

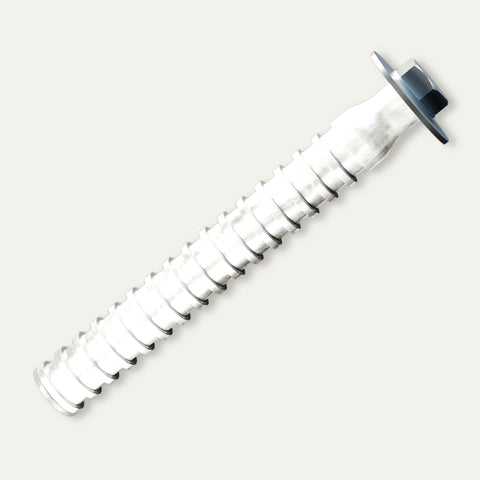

HD75

Coming soon

3/4″ bolt, machined from 304 stainless. For speed bumps under trucks and anything hit over and over.

$280per 4-pack · $70.00 each

Get notified: HD75

Buying for a business?

Contractors, facilities teams and distributors order from us every day. Tell us what you need and we'll quote it.

Request a quote Find a local dealer

Call (973) 669-8214Email support@asphaltanchors.com

  • Volume quotesPallet and case quantities for large jobs.
  • Pay by invoiceFor business accounts.
  • Local stockDistributors carry our anchors across the US.
  • Spec documentsDatasheets, test reports and install guides for submittals.
