SP18 Asphalt Anchor, 6-PACK
- 7/16"-14 UNC thread
- 12″ anchor
- 1" bit
Speed bumps, open carports, bollards, solid or tall fences
In-stock orders placed before noon Eastern ship the next business day. Returns within 60 days of shipment (20% restocking fee). Shipping policy · Return policy
How it installs
Drill a hole with a 1" bit, as deep as the anchor (12″), using a hammer drill.
Clean the hole: brush, blow, brush, blow.
Fill the hole with EPX2 or EPX3 adhesive. The adhesive calculator tells you how much.
Insert the anchor until it sits flush with the pavement.
Wait for the adhesive to cure (follow its cure time; longer in the cold), then bolt your post down.
About this anchor

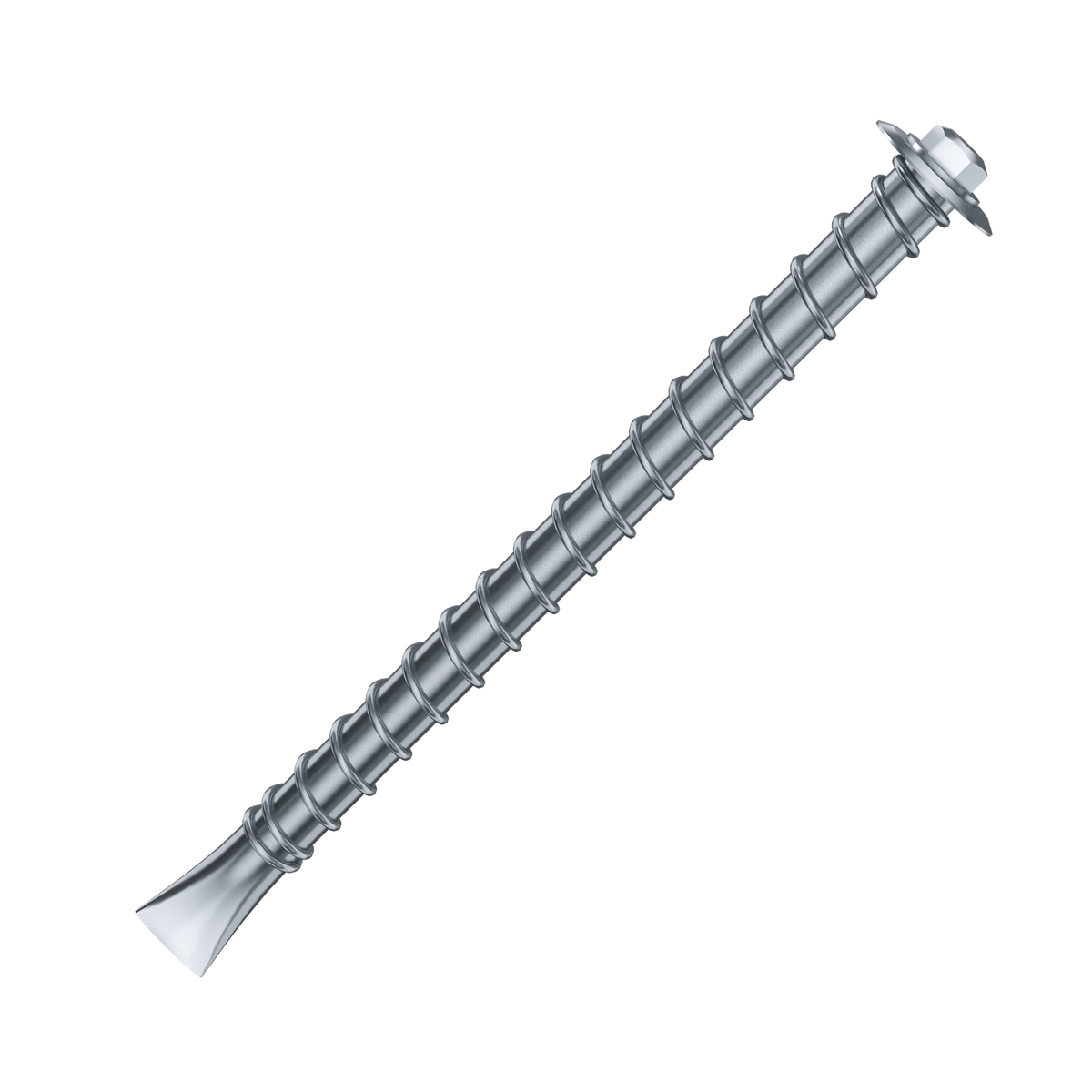

The SP18 is a heavy duty asphalt anchor rated at 2,500 lbs. pull. The 12" long anchor is designed to mount plates, fences, machinery directly to asphalt surfaces.

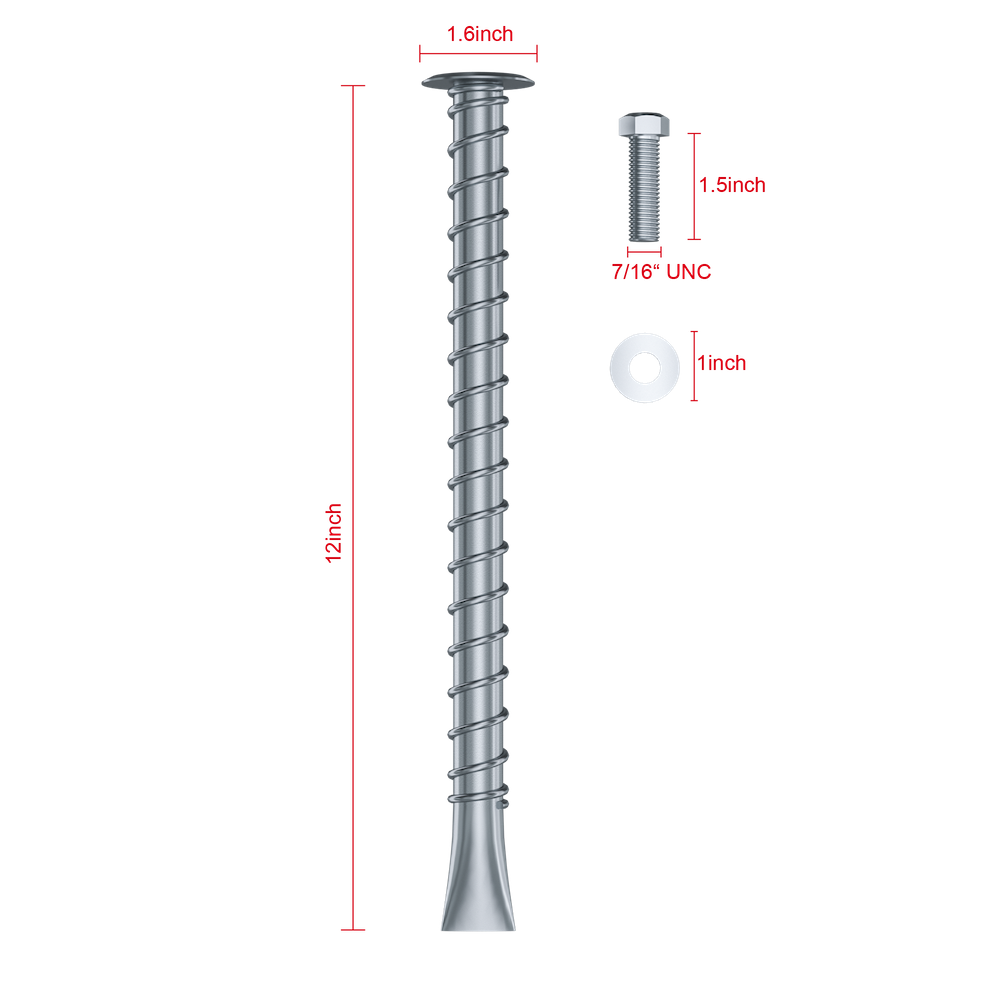

SP18-716 incorporates a 7/16-14 UNC female thread. The thread of the bolt inside the anchor should not exceed 6". The anchor requires a 1" hole 12" deep and the use of a grout such as our EPX2. A 1.4" welded washer at the top of the anchor prevents the anchor from dropping below the surface as well as preventing the anchor from being pulled up into the mounting plate when the bolt is tightened.
The SP18 anchors are mounted flush with the surface of the roadway, so that attached devices can be removed without leaving dangerous screws or protrusions on the walkway.

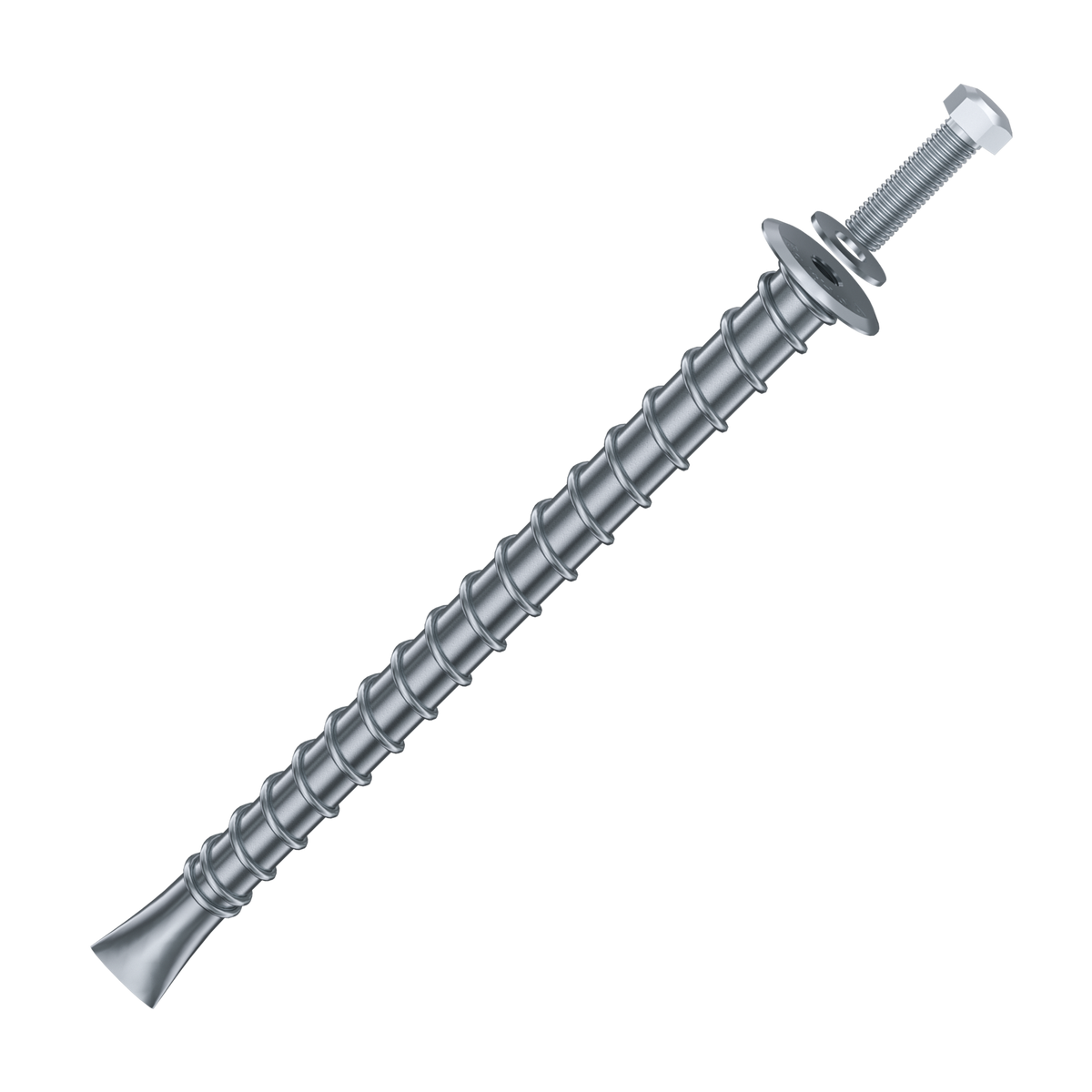

The SP18-716 is a provided in sets of 6 anchors, each pre-installed with a bolt and a washer.
We offer 2 variants - Zinc plated for normal usage, and Stainless Steel anchors for applications near potable water, or high salt environment.
Specs & downloads
| Duty | Heavy Duty |
|---|---|
| Guide load: pull | 2,500 lb |
| Guide load: side | 2,000 lb |
| Material | Zinc, Stainless steel |
| Thread | 7/16"-14 UNC |
| Bolt included | 7/16" × 1.25" |
| Anchor length | 12″ |
| Head size | 1.35" × 0.08" |
| Drill bit | 1" |
| Pack | 6 anchors |
| Weight | 5.5 lb |
| Brand | Asphalt Anchors |
| SKU | 01-6318.71K |
Guide loads come from the low end of our test results, including hot pavement up to 120°F, for short-duration loads on anchors installed in 3″ asphalt. The side guide load is where the anchor starts to shift, not where it fails. They are guidance, not a certified rating. How we test
Downloads

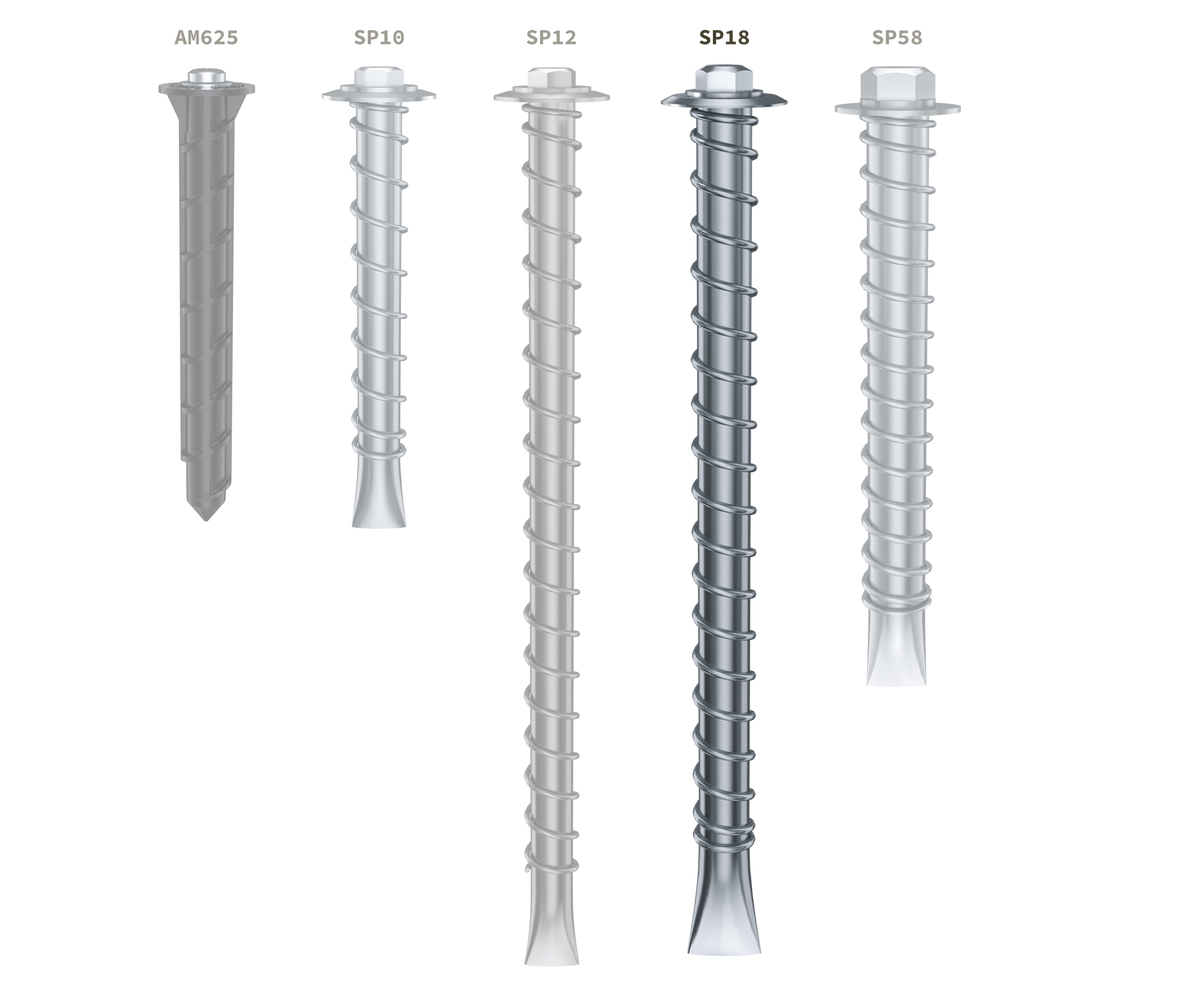

Compare anchors
| Anchor | Length | Bolt | Duty | Price |
|---|---|---|---|---|
| SP10 | 6″ | 3/8" × 1" | Light Use | $66.00 |
| SP12 | 12″ | 3/8" × 1" | Medium Duty | $72.00 |
| SP18 This anchor | 12″ | 7/16" × 1.25" | Heavy Duty | $84.00 |
| SP58 | 10″ | 5/8" × 2" | Extra Heavy Duty | $200.00 |
| US50 US Source Asphalt Anchor | 12″ | Heavy Duty | $100.00 |
Questions
EPX3 or EPX2?
EPX3 is the better adhesive in every way and works in cold weather. EPX2 is an anchoring cement whose advantage is cost; use it at 45°F and above. We recommend EPX3 when it's typically below 45°F near you this time of year, and EPX2 otherwise.
Do I need the CG40 caulk gun?
Only if you don't already have a high-leverage or electric caulk gun. EPX3 needs a high-thrust gun to dispense.
