SP12 Asphalt Anchor, 6-PACK
- 3/8"-16 UNC thread
- 12″ anchor
- 7/8" bit
Fences up to 6 ft, large signs, small structures
In-stock orders placed before noon Eastern ship the next business day. Returns within 60 days of shipment (20% restocking fee). Shipping policy · Return policy

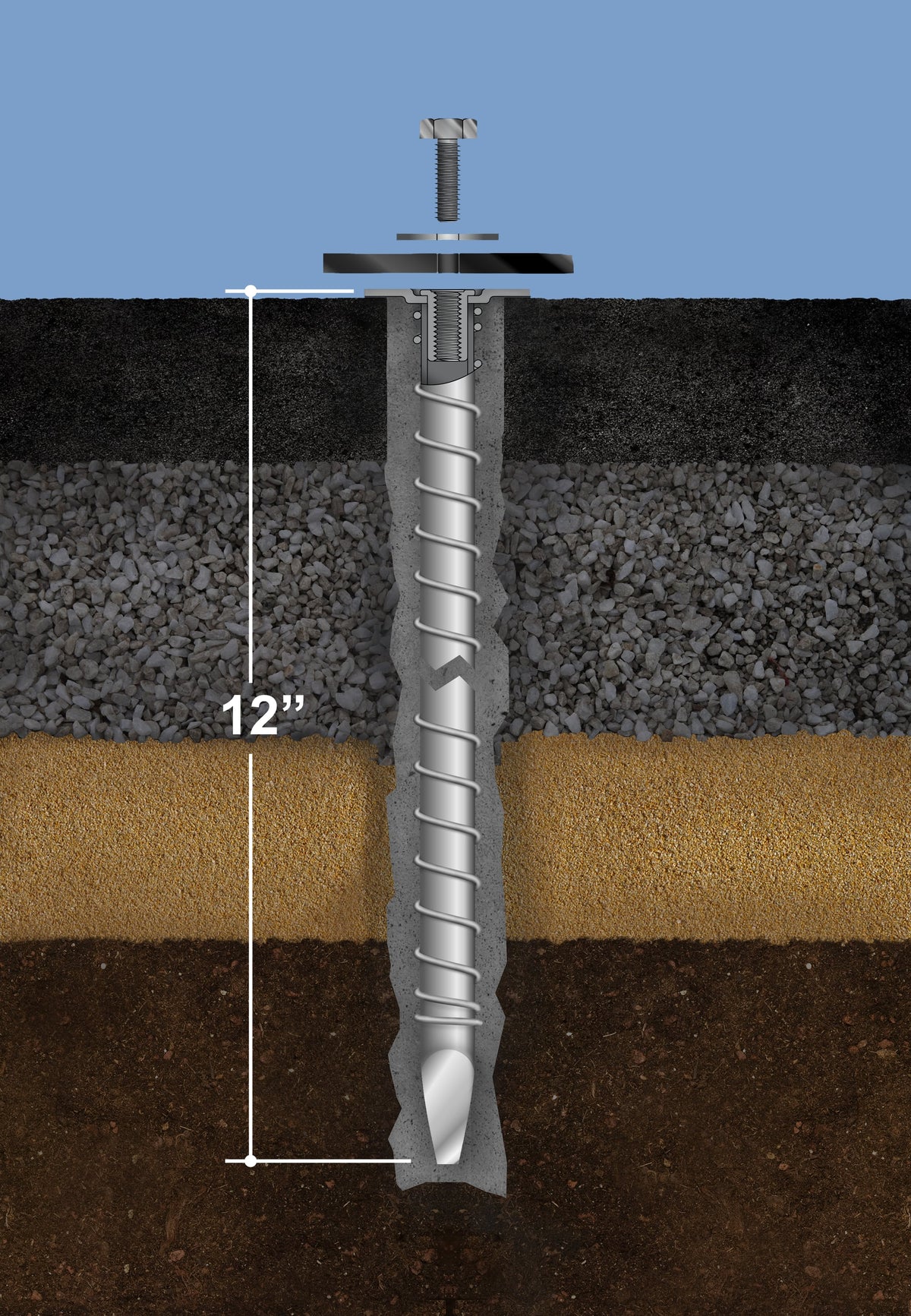

How it installs
Drill a hole with a 7/8" bit, as deep as the anchor (12″), using a hammer drill.
Clean the hole: brush, blow, brush, blow.
Fill the hole with EPX2 or EPX3 adhesive. The adhesive calculator tells you how much.
Insert the anchor until it sits flush with the pavement.
Wait for the adhesive to cure (follow its cure time; longer in the cold), then bolt your post down.
About this anchor

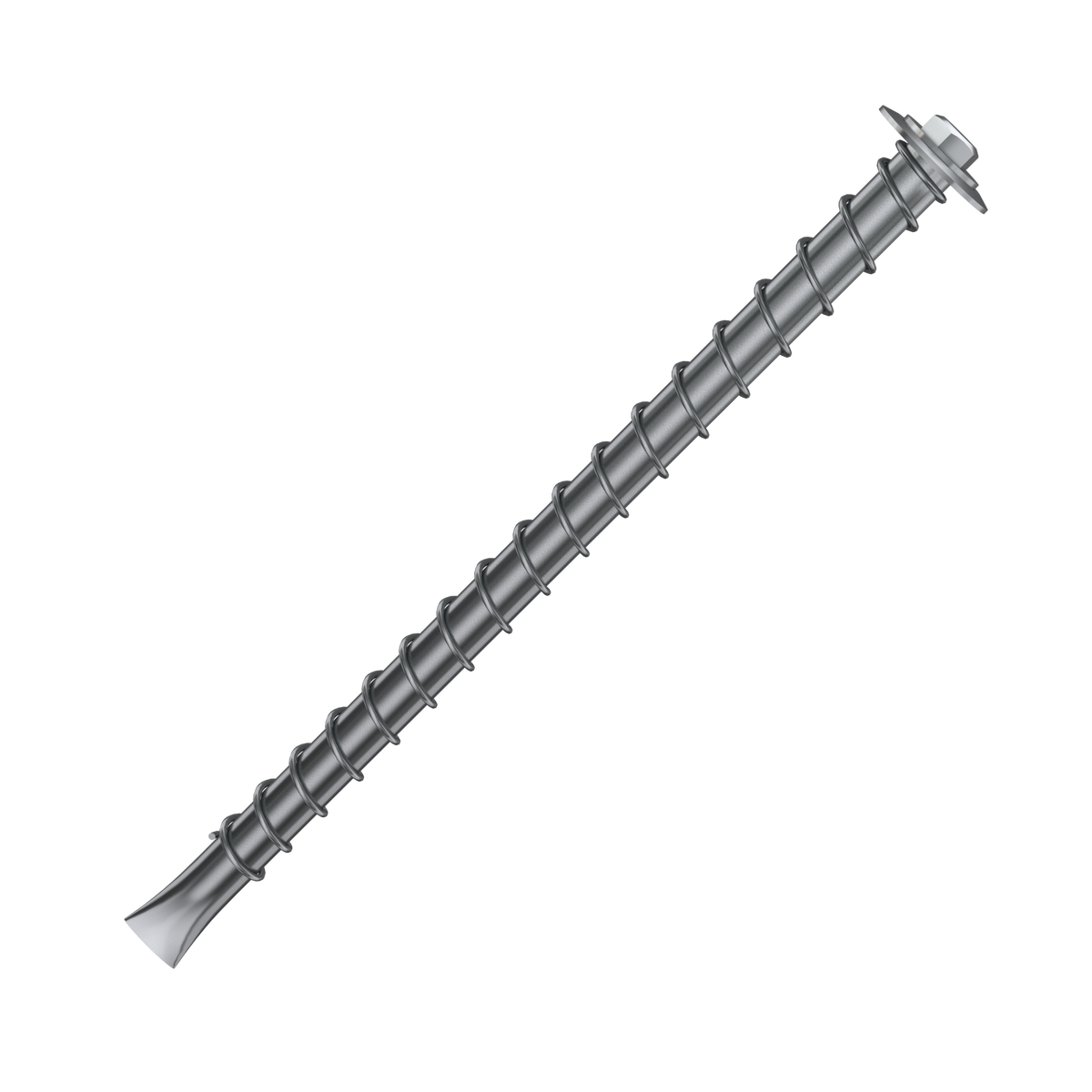

BoltHold SP12 is a medium duty asphalt anchor rated at 2,000 lbs. pull. The anchor is designed for mounting plates, fences, machinery and the like directly to asphalt surfaces.
The 12" long SP12-38 incorporates a 3/8"-16 UNC female internal thread. The length of the bolt inside the anchor should not exceed 5". The anchor requires a 7/8" hole 12" deep and the use of a grout such as our EPX2 or EPX3. A 1.4" diameter header at the top of the anchor prevents the anchor from dropping below the surface. The SP12 anchors are mounted flush with the surface of the roadway, allowing attached devices to be removed without leaving dangerous screws or protrusions on the walkway.
The SP12-38K is a set of 6 anchors, each pre-installed with a 1" bolt and a 1" washer.
We offer 2 variants. Use stainless for high corrosion resistance or salty environments.
Specs & downloads
| Duty | Medium Duty |
|---|---|
| Guide load: pull | 2,000 lb |
| Guide load: side | 1,500 lb |
| Material | Zinc, Stainless steel |
| Thread | 3/8"-16 UNC |
| Bolt included | 3/8" × 1" |
| Anchor length | 12″ |
| Head size | 1.35" × 0.08" |
| Drill bit | 7/8" |
| Pack | 6 anchors |
| Weight | 3.5 lb |
| Brand | Asphalt Anchors |
| SKU | 01-6315.38K |
Guide loads come from the low end of our test results, including hot pavement up to 120°F, for short-duration loads on anchors installed in 3″ asphalt. The side guide load is where the anchor starts to shift, not where it fails. They are guidance, not a certified rating. How we test
Downloads
Compare anchors
| Anchor | Length | Bolt | Duty | Price |
|---|---|---|---|---|
| SP10 | 6″ | 3/8" × 1" | Light Use | $66.00 |
| SP12 This anchor | 12″ | 3/8" × 1" | Medium Duty | $72.00 |
| SP18 | 12″ | 7/16" × 1.25" | Heavy Duty | $84.00 |
| SP58 | 10″ | 5/8" × 2" | Extra Heavy Duty | $200.00 |
| US50 US Source Asphalt Anchor | 12″ | Heavy Duty | $100.00 |
Questions
EPX3 or EPX2?
EPX3 is the better adhesive in every way and works in cold weather. EPX2 is an anchoring cement whose advantage is cost; use it at 45°F and above. We recommend EPX3 when it's typically below 45°F near you this time of year, and EPX2 otherwise.
Do I need the CG40 caulk gun?
Only if you don't already have a high-leverage or electric caulk gun. EPX3 needs a high-thrust gun to dispense.
