SP58 Asphalt Anchor, 6-PACK
- 5/8"-11 UNC thread
- 10″ anchor
- 1-1/2" (SDS MAX) bit
Bollards in busy lots, carports with walls, high-traffic speed bumps, pallet racks
In-stock orders placed before noon Eastern ship the next business day. Returns within 60 days of shipment (20% restocking fee). Shipping policy · Return policy
How it installs
Drill a hole with a 1-1/2" (SDS MAX) bit, as deep as the anchor (10″), using a hammer drill.
Clean the hole: brush, blow, brush, blow.
Fill the hole with EPX2 or EPX3 adhesive. The adhesive calculator tells you how much.
Insert the anchor until it sits flush with the pavement.
Wait for the adhesive to cure (follow its cure time; longer in the cold), then bolt your post down.
About this anchor
The SP58 is an extra-heavy-duty asphalt anchor. The 10" long anchor is designed to mount speed bumps and curbs directly to asphalt surfaces. Guide loads in 3" asphalt: 2,000 lb pull and 1,500 lb side, for short-duration loads with the anchor installed per our instructions. They're guidance, not a certified rating.
The anchor incorporates a 5/8"-11 UNC (coarse) female thread. The anchor is hollow, so a bolt can reach up to 9" down from the top. The anchor installation requires a 1.5" hole 10" deep and the use of our EPX2 or EPX3. A 2" welded flange at the top of the anchor prevents the anchor from dropping below the surface. The SP58 anchors are mounted flush with the surface of the roadway, so that attached devices such as speed bumps can be removed without leaving dangerous screws or protrusions on the roadway.

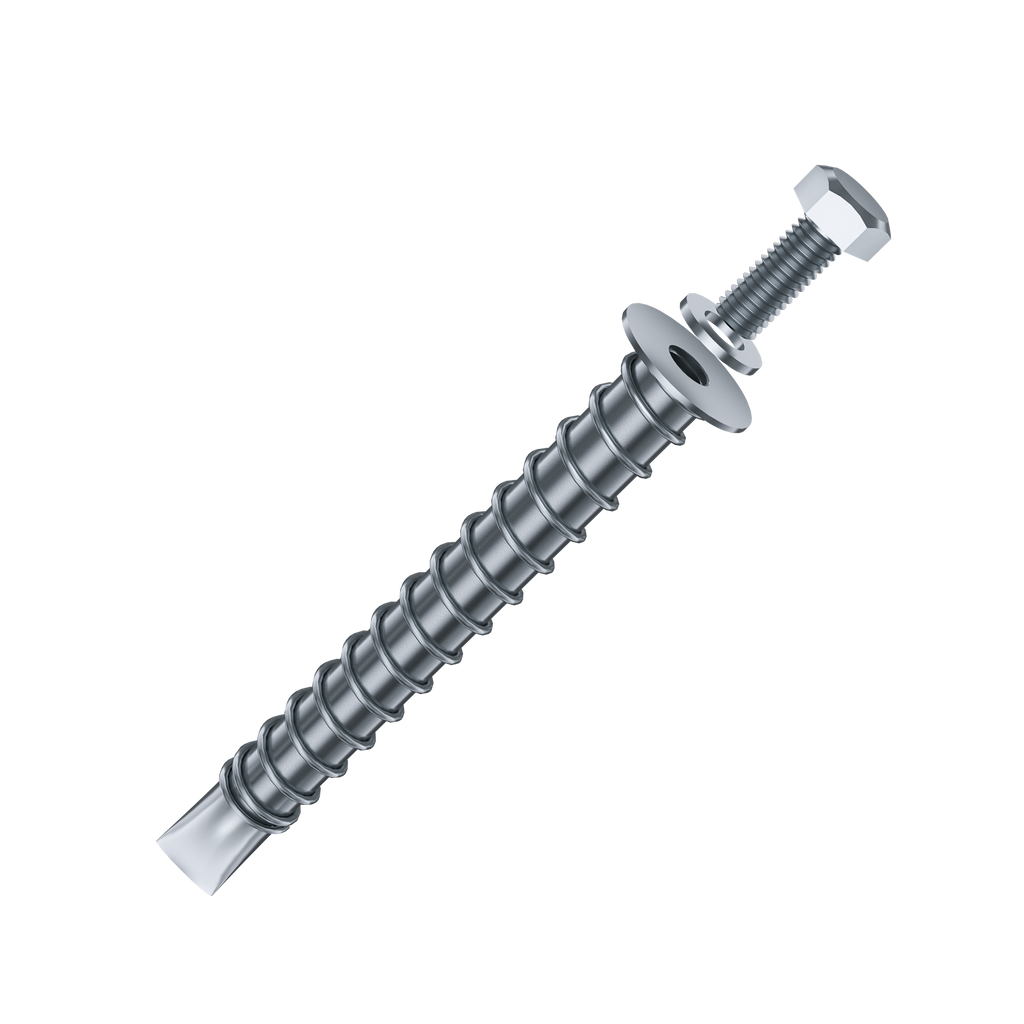

The SP58-58 is a set of 6 anchors, each pre-installed with a grade 5 5/8"-11 x 2" bolt and a 1-3/16" washer (304 stainless steel on the stainless variant).
Specs & downloads
| Duty | Extra Heavy Duty |
|---|---|
| Guide load: pull | 2,000 lb |
| Guide load: side | 1,500 lb |
| Material | Zinc, Stainless steel |
| Thread | 5/8"-11 UNC |
| Bolt included | 5/8" × 2" |
| Anchor length | 10″ |
| Head size | 1.5" × 0.08" |
| Drill bit | 1-1/2" (SDS MAX) |
| Pack | 6 anchors |
| Weight | 7.0 lb |
| Brand | Asphalt Anchors |
| SKU | 01-6358.5SK |
Guide loads come from the low end of our test results, including hot pavement up to 120°F, for short-duration loads on anchors installed in 3″ asphalt. The side guide load is where the anchor starts to shift, not where it fails. They are guidance, not a certified rating. How we test
Downloads
Compare anchors
| Anchor | Length | Bolt | Duty | Price |
|---|---|---|---|---|
| SP10 | 6″ | 3/8" × 1" | Light Use | $66.00 |
| SP12 | 12″ | 3/8" × 1" | Medium Duty | $72.00 |
| SP18 | 12″ | 7/16" × 1.25" | Heavy Duty | $84.00 |
| SP58 This anchor | 10″ | 5/8" × 2" | Extra Heavy Duty | $200.00 |
| US50 US Source Asphalt Anchor | 12″ | Heavy Duty | $100.00 |
Questions
EPX3 or EPX2?
EPX3 is the better adhesive in every way and works in cold weather. EPX2 is an anchoring cement whose advantage is cost; use it at 45°F and above. We recommend EPX3 when it's typically below 45°F near you this time of year, and EPX2 otherwise.
Do I need the CG40 caulk gun?
Only if you don't already have a high-leverage or electric caulk gun. EPX3 needs a high-thrust gun to dispense.
