BoltHold SP12-38 Asphalt Anchor, 6-PACK

BoltHold SP12-38 Asphalt Anchor, 6-PACK

$72.00

12" long. 3/8" Female thread, with bolt and washer; 2,000 lbs. Pull Rated

Hardware material

BoltHold SP12 is a medium duty asphalt anchor rated at 2,000 lbs. pull. The anchor is designed for mounting plates, fences, machinery and the like directly to asphalt surfaces.

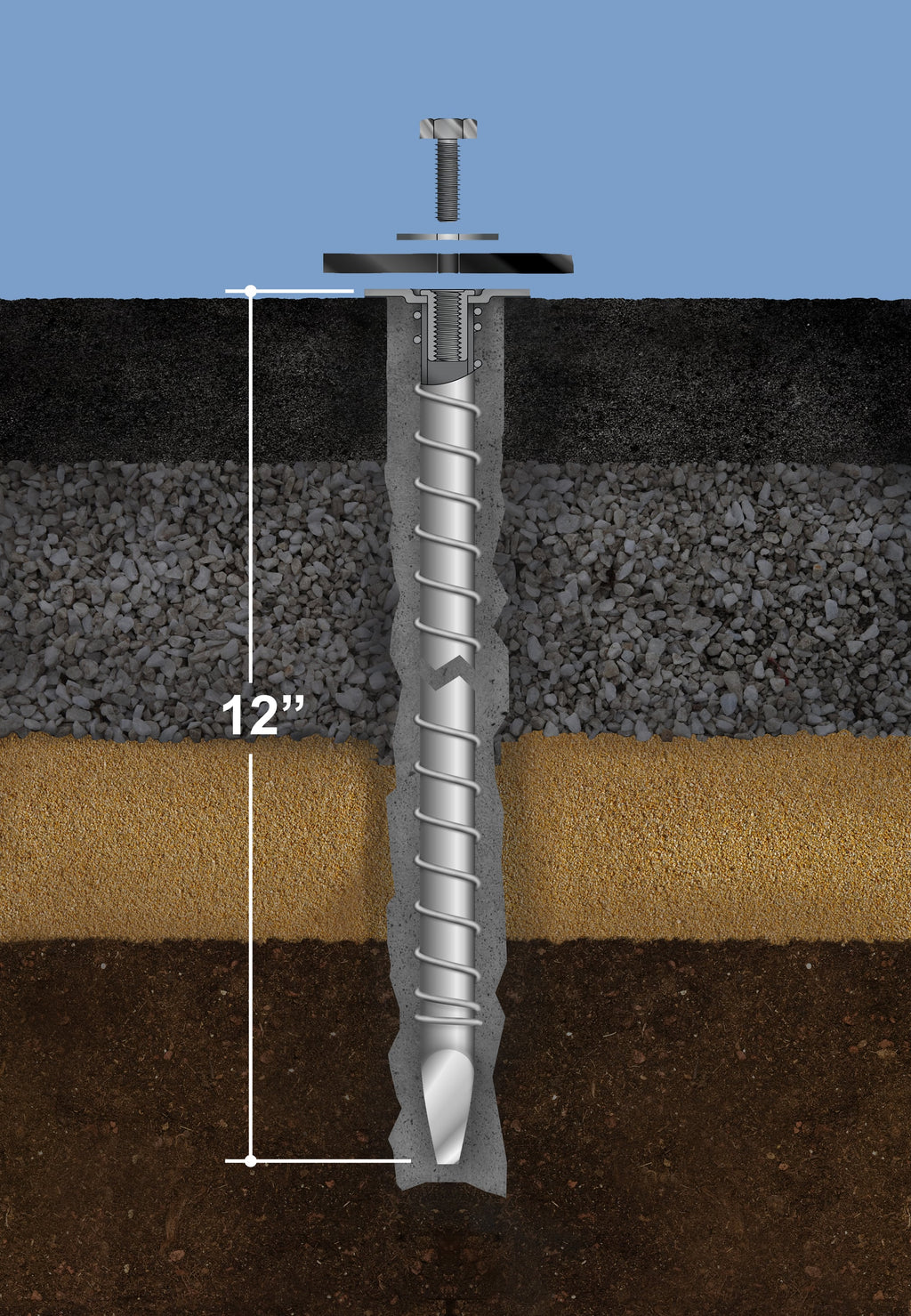

The 12" long SP12-38 incorporates a 3/8"-16 UNC female internal thread.  The length of the bolt inside the anchor should not exceed 5".   The anchor requires a 7/8" hole 12" deep and the use of a grout such as our EPX2 or EPX3.   A 1.4" diameter header at the top of the anchor prevents the anchor from dropping below the surface.  The SP12 anchors are mounted flush with the surface of the roadway, allowing attached devices to be removed without leaving dangerous screws or protrusions on the walkway.

The SP12-38K is a set of 6 anchors, each pre-installed with a 1" bolt and a 1" washer.

We offer 2 variants. Use stainless for high corrosion resistance or salty environments.

Detailed Instructions

Video Instructions

1 Page Instructions

Technical Details

Weight 3.5 lbs
SKU 01-6315.38K
Barcode 0689481982540
3D Model View 3D Model
