BoltHold SP18-716 Asphalt Anchor, 6-PACK
12" long, 7/16" Female thread; with bolt and washer, 2,500 lb.Pull Force

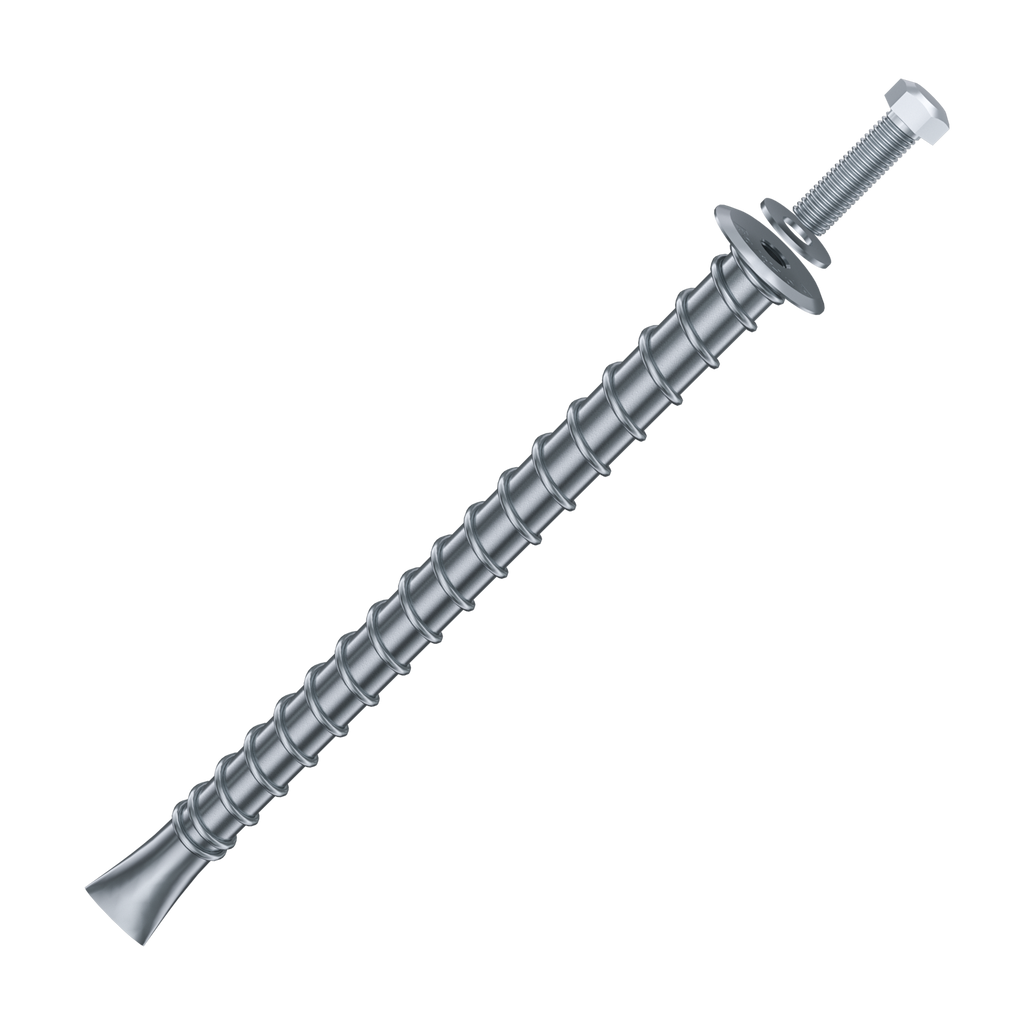

The SP18 is a heavy duty asphalt anchor rated at 2,500 lbs. pull. The 12" long anchor is designed to mount plates, fences, machinery directly to asphalt surfaces.
SP18-716 incorporates a 7/16-14 UNC female thread. The thread of the bolt inside the anchor should not exceed 6". The anchor requires a 1" hole 12" deep and the use of a grout such as our EPX2. A 1.4" welded washer at the top of the anchor prevents the anchor from dropping below the surface as well as preventing the anchor from being pulled up into the mounting plate when the bolt is tightened.
The SP18 anchors are mounted flush with the surface of the roadway, so that attached devices can be removed without leaving dangerous screws or protrusions on the walkway.
The SP18-716 is a provided in sets of 6 anchors, each pre-installed with a bolt and a washer.
We offer 2 variants - Zinc plated for normal usage, and Stainless Steel anchors for applications near potable water, or high salt environment.
Technical Details
| Weight | 5.5 lbs |
|---|---|
| SKU | 01-6318.71K |
| Barcode | 0689481982915 |
| 3D Model | View 3D Model |
